ENGINE EXPANSION KIT for BIG TWIN FRAME JIGS

Regular price
$800.00
Sale price
$800.00
Regular price
Sold out
Unit price
per

8/31/22: LEAD TIME 6-8 weeks to ship.

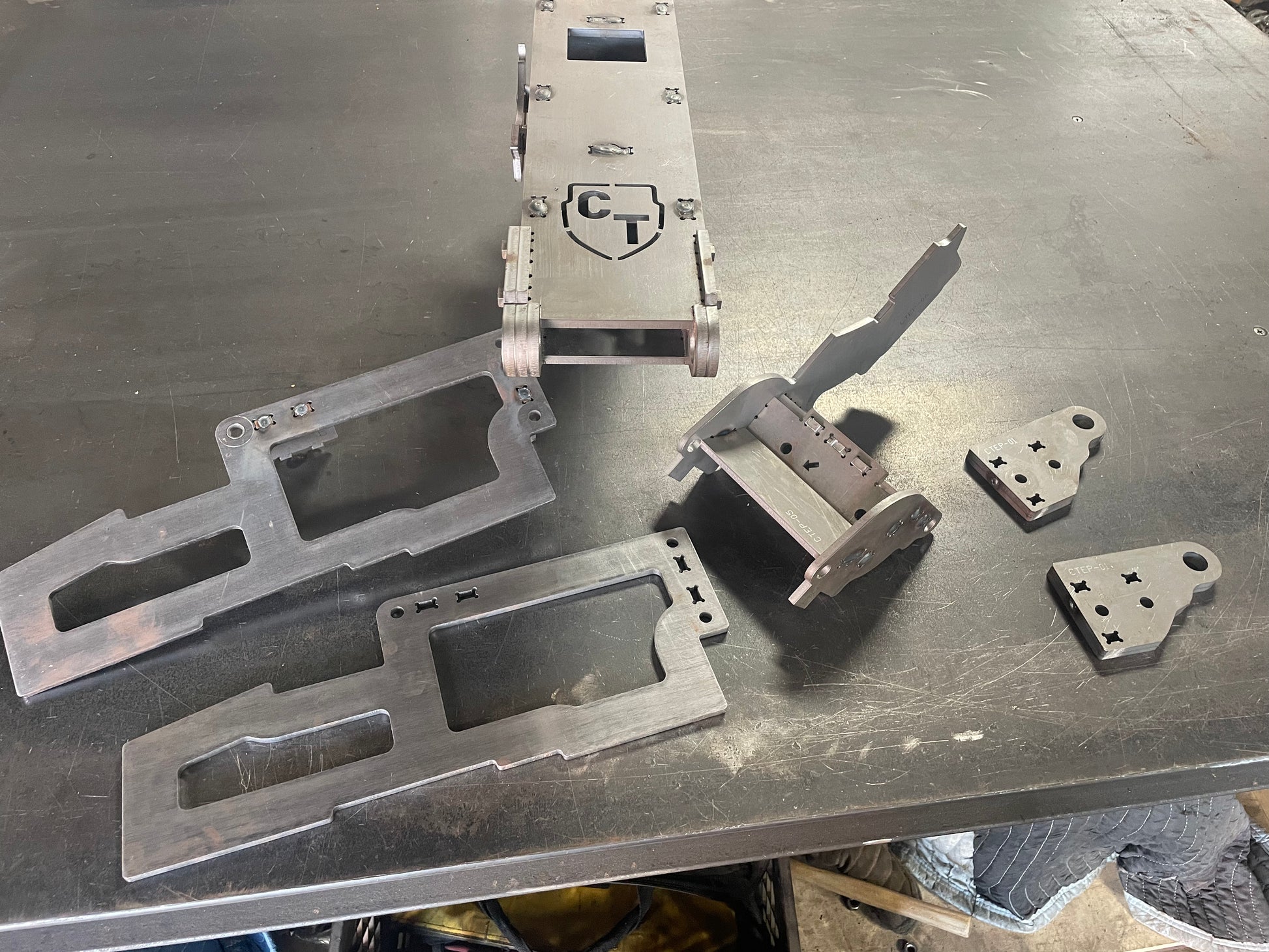

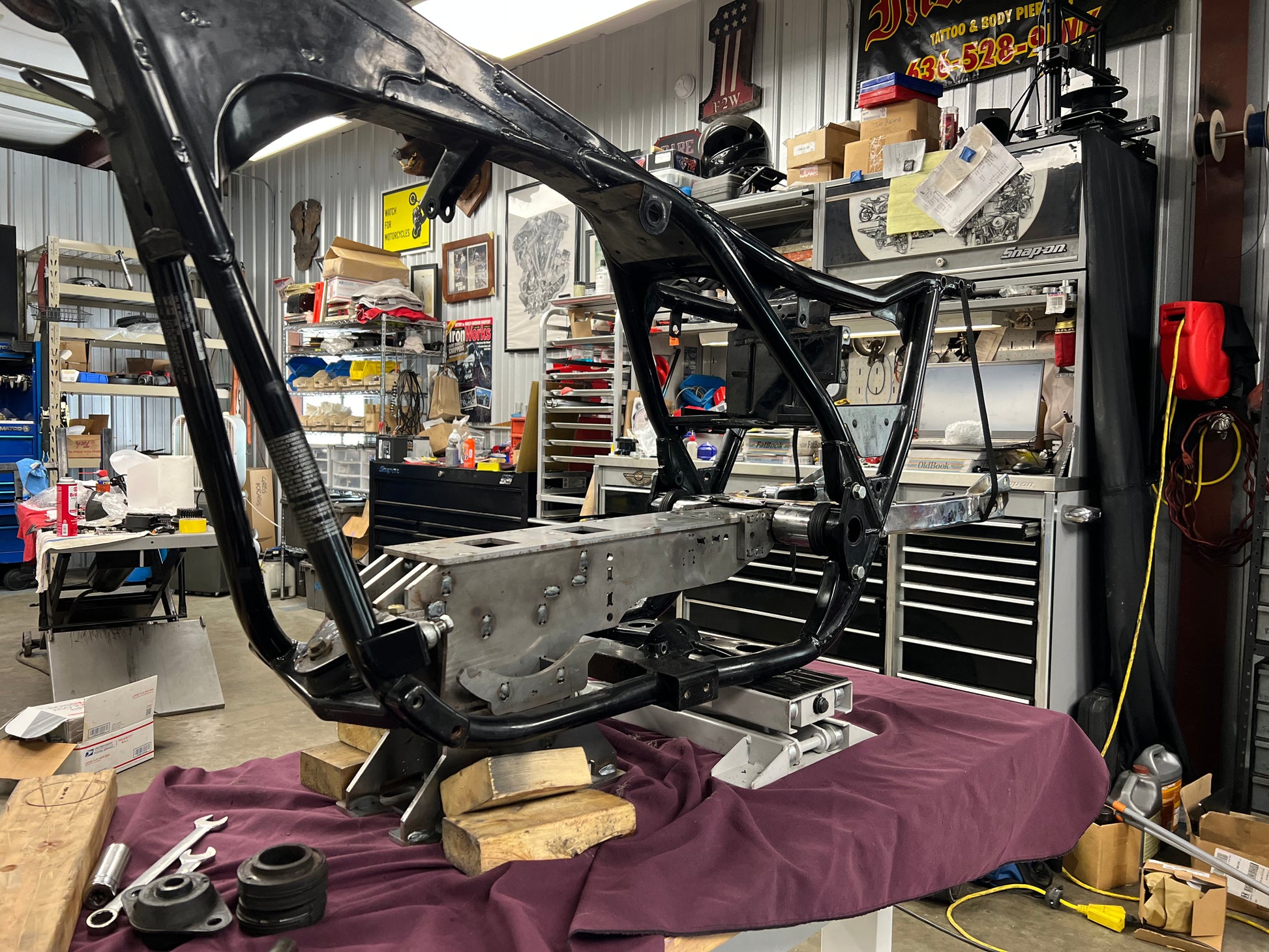

Expand the versatility of your frame jig with these Sportster/Twincam fixtures for your frame jig.

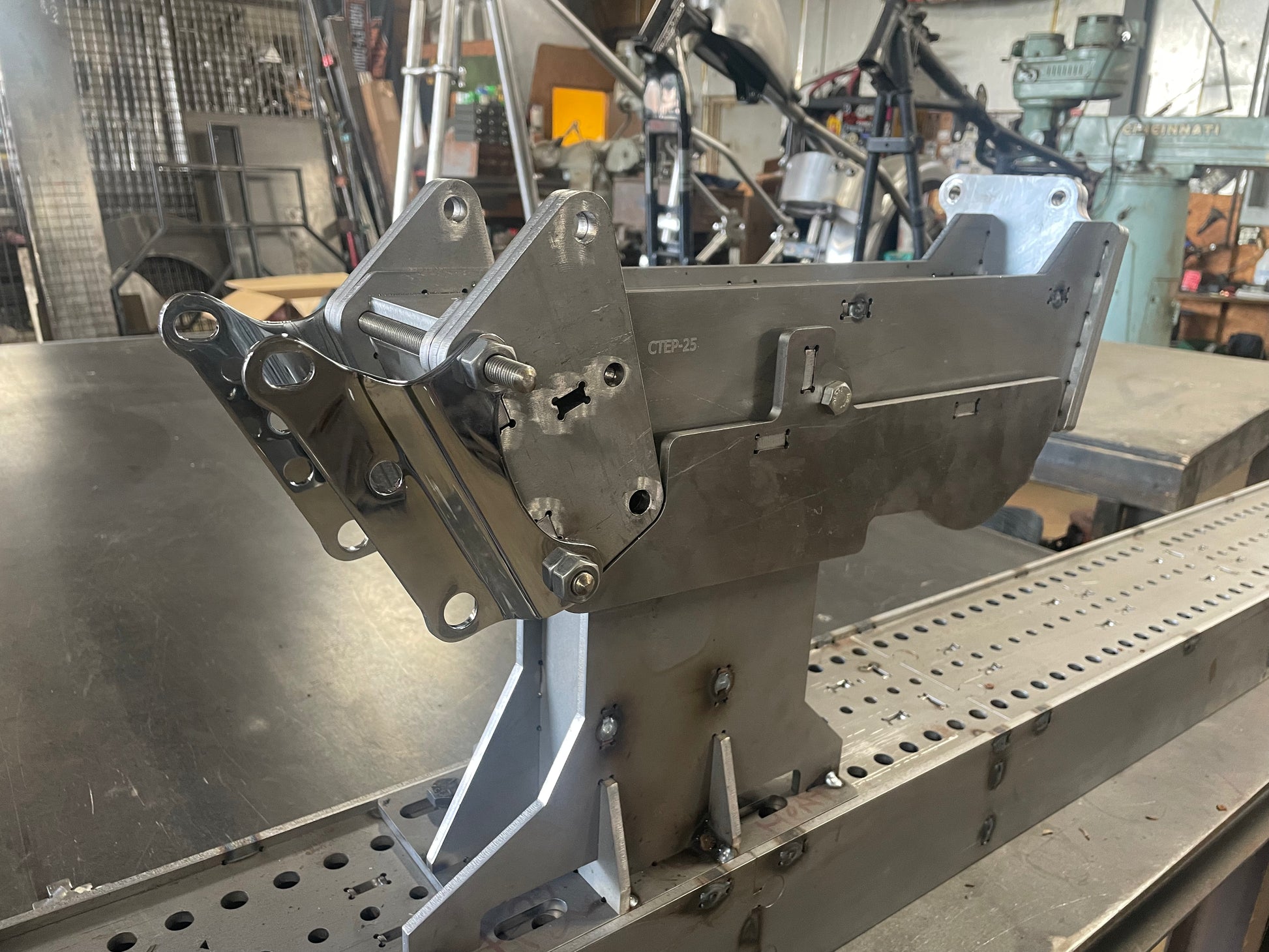

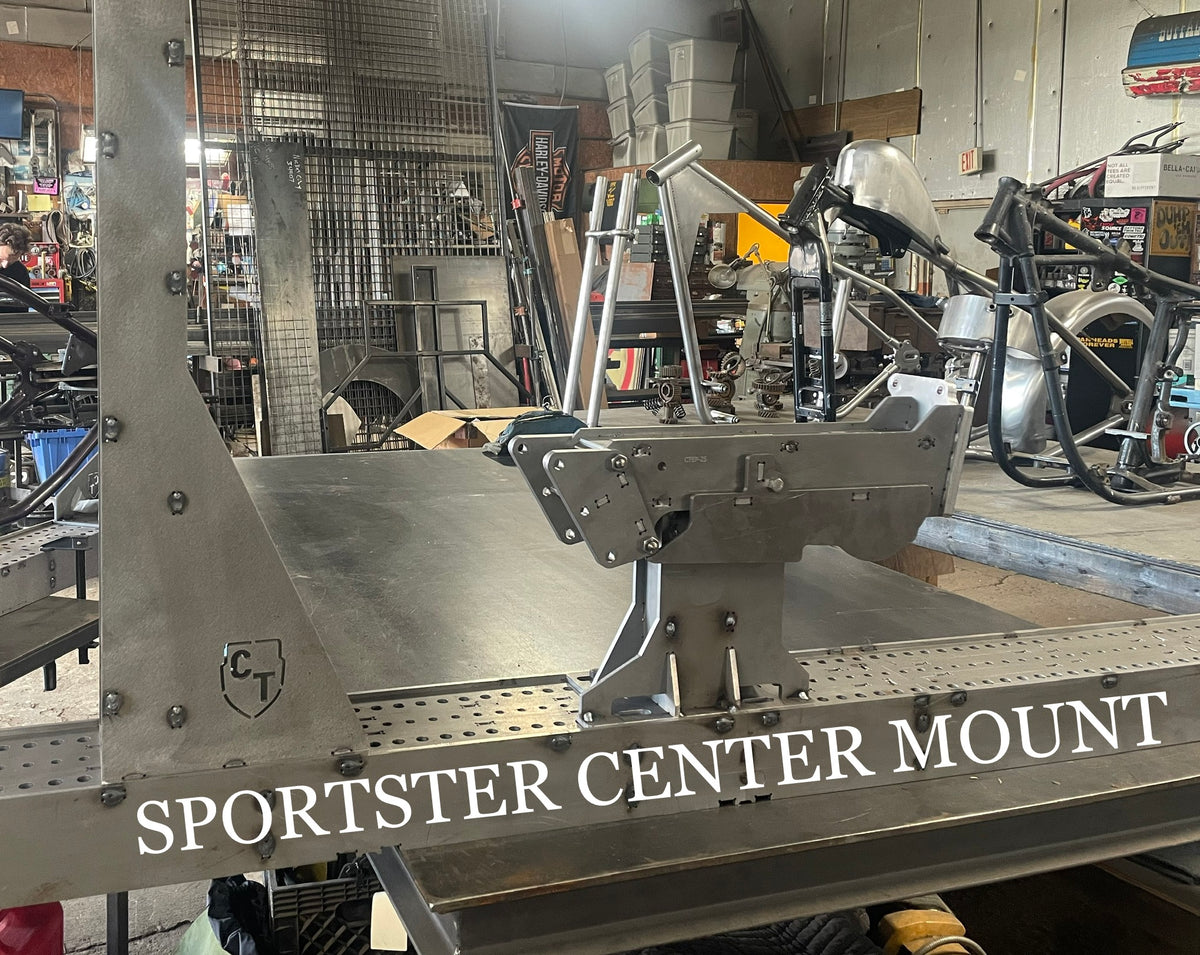

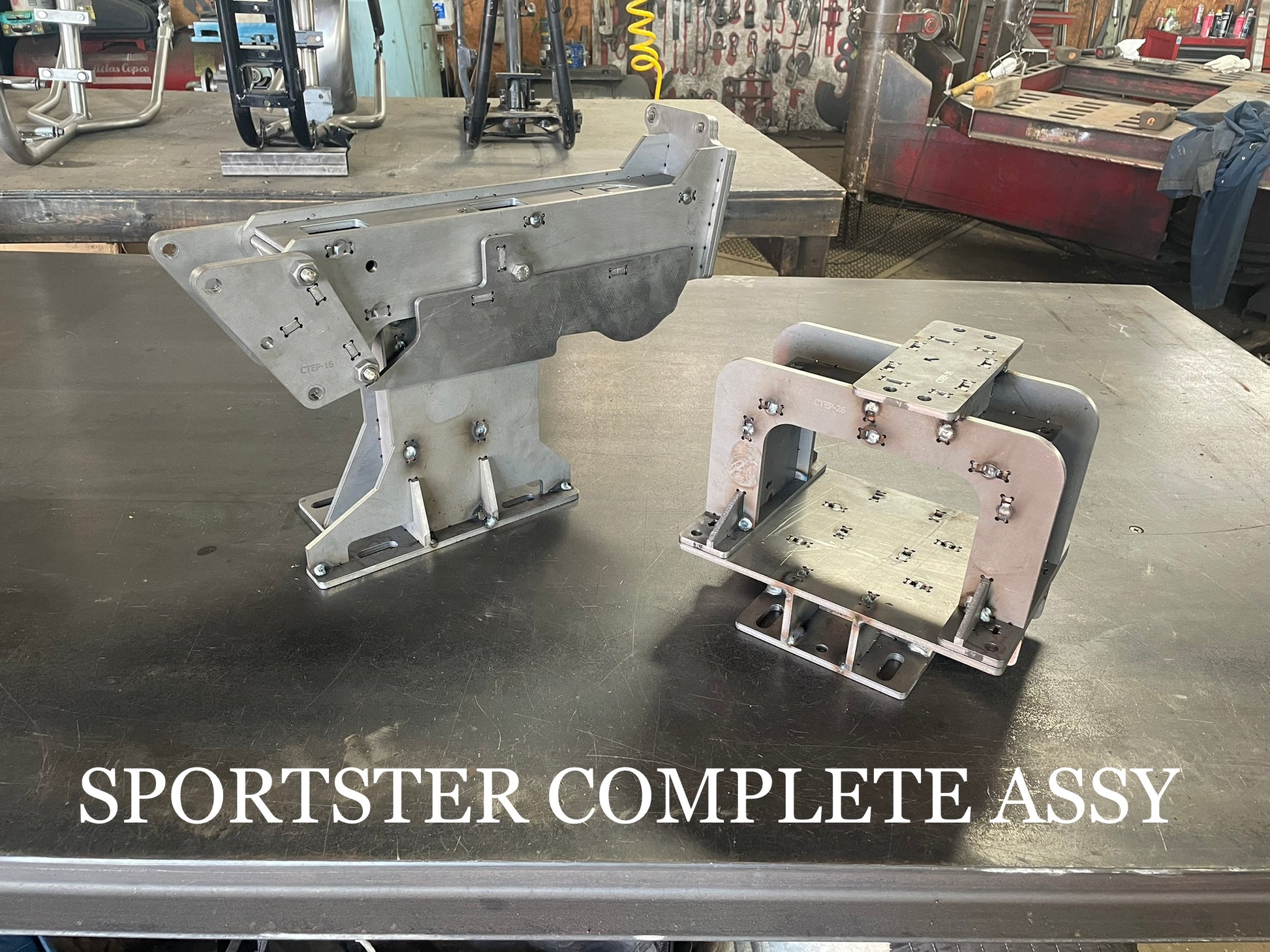

Sportster:

  • Fits rigid Evo sportsters 86-03 (minor modification may be necessary for 86-90)

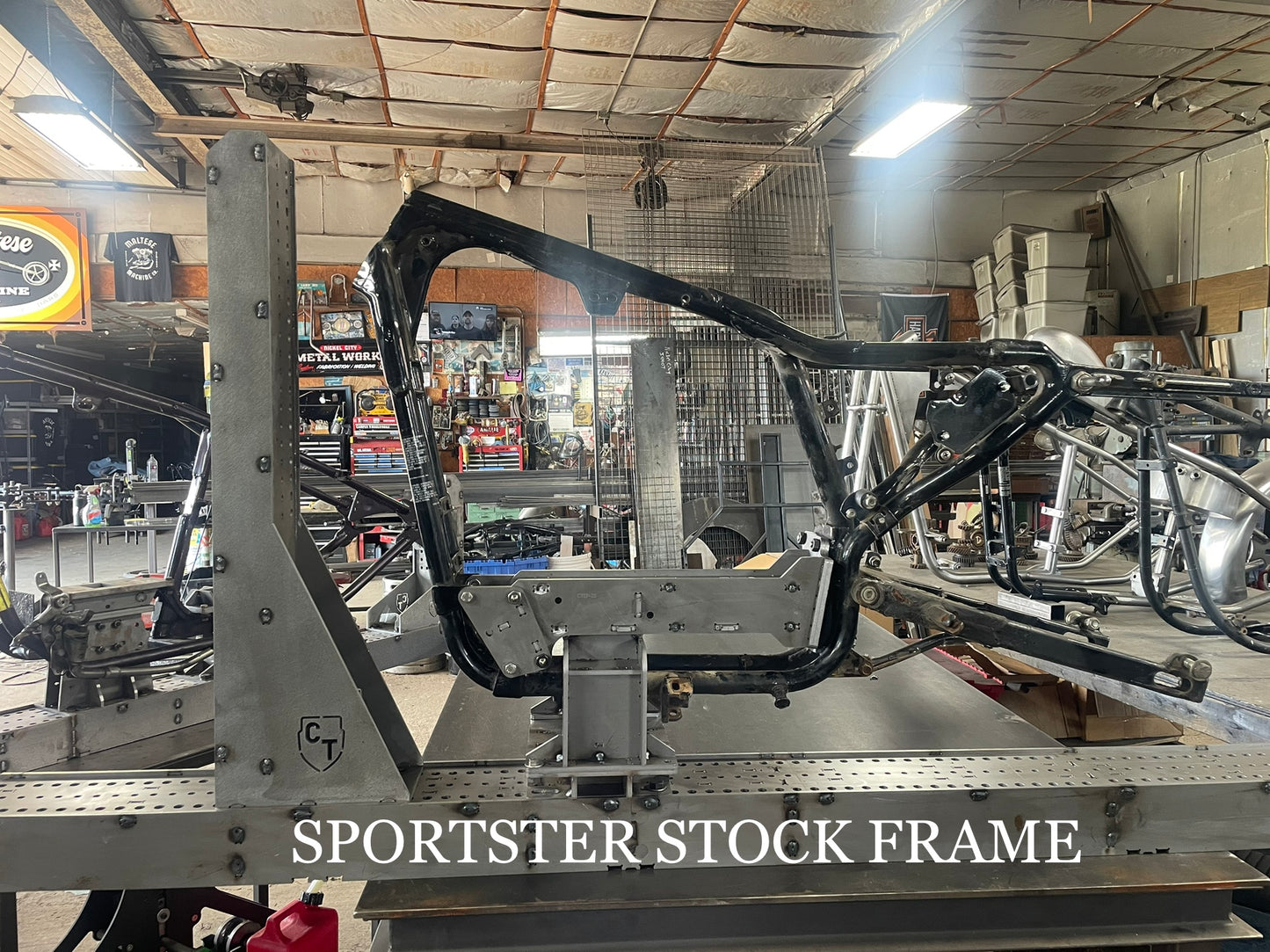

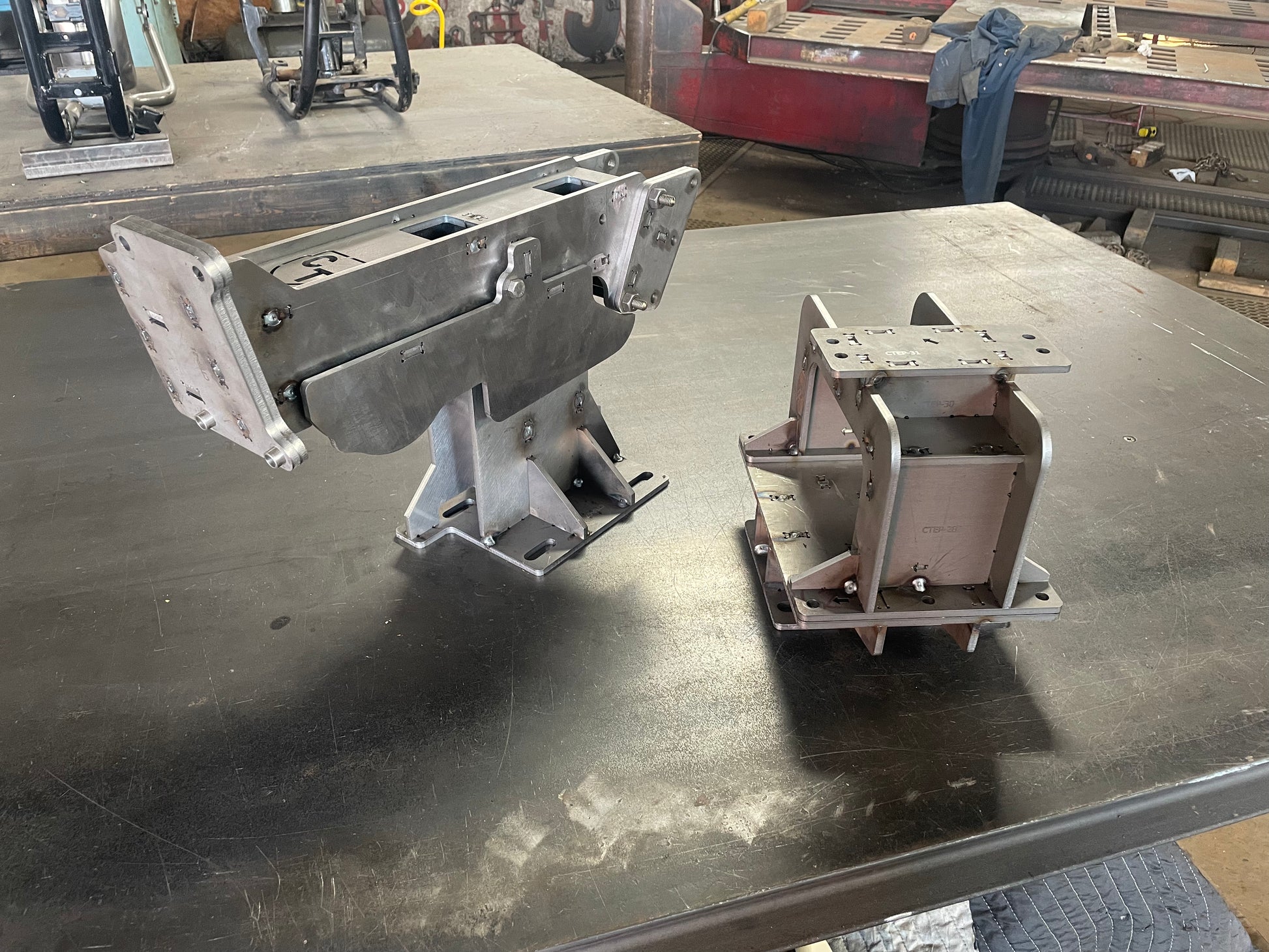

  • Includes 2 riser assemblies. Stock frame (for doing hardtails/mods) and center upright (for building Big Twin or other style frames)

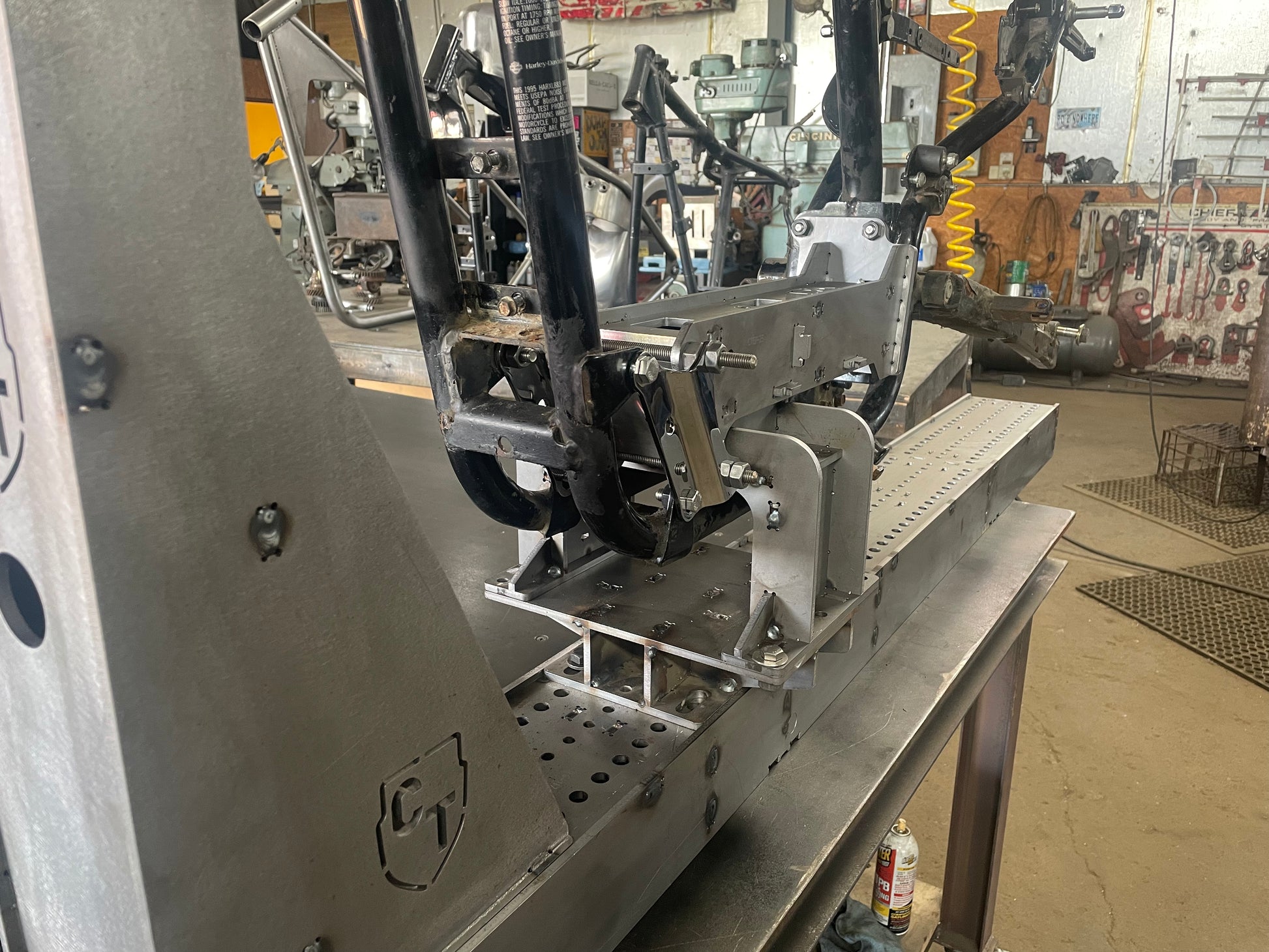

  • Includes front motor plate fixture. This allows you to build frames that use the stock front motor plates OR a custom frame that uses your own plate design (or maybe no plates at all!)

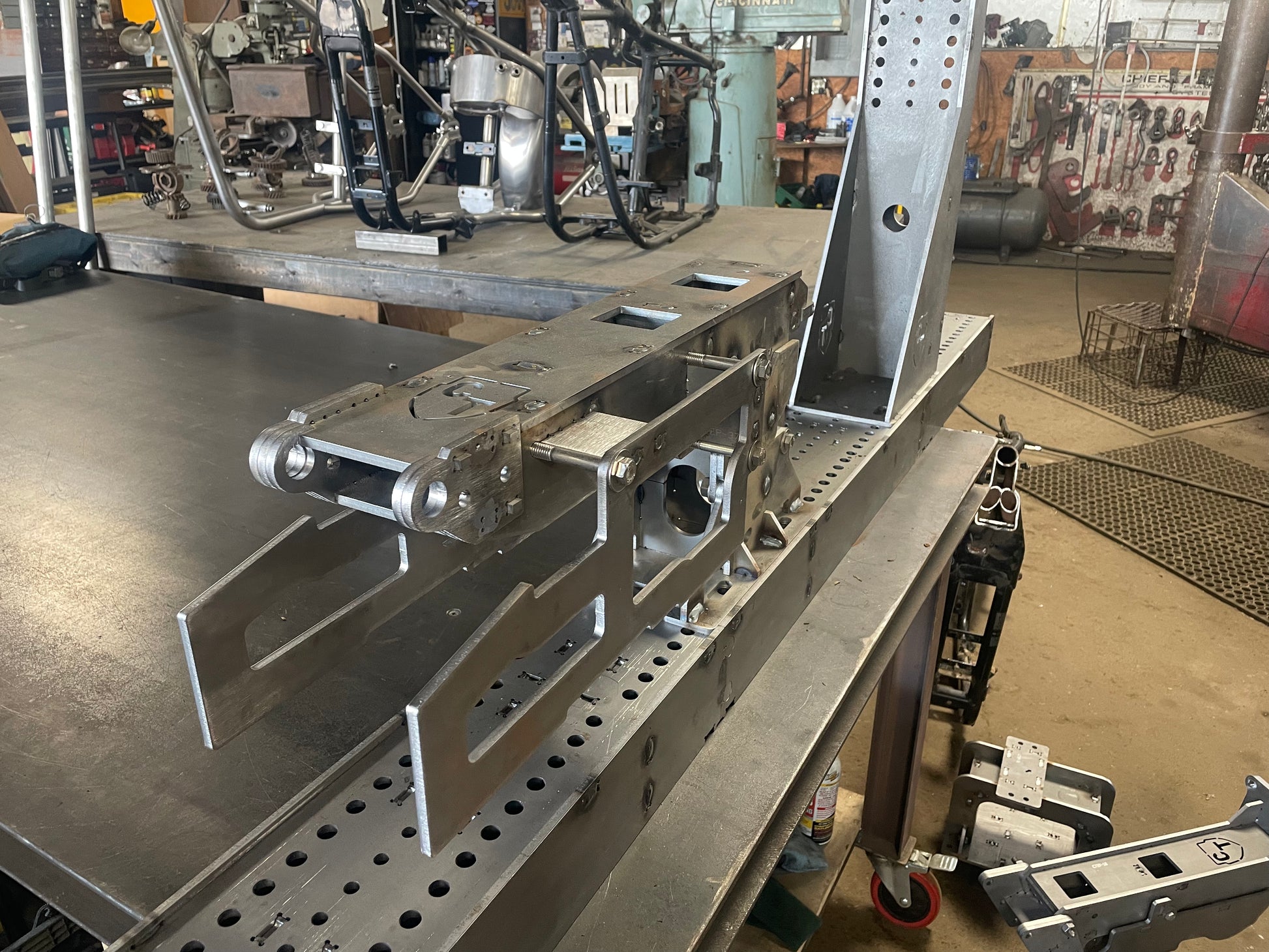

  • Bolt on reference plates for bottom end clearance
  • Rear alignment bushings and hardware included
  • Does NOT include cardboard reference print at this time.

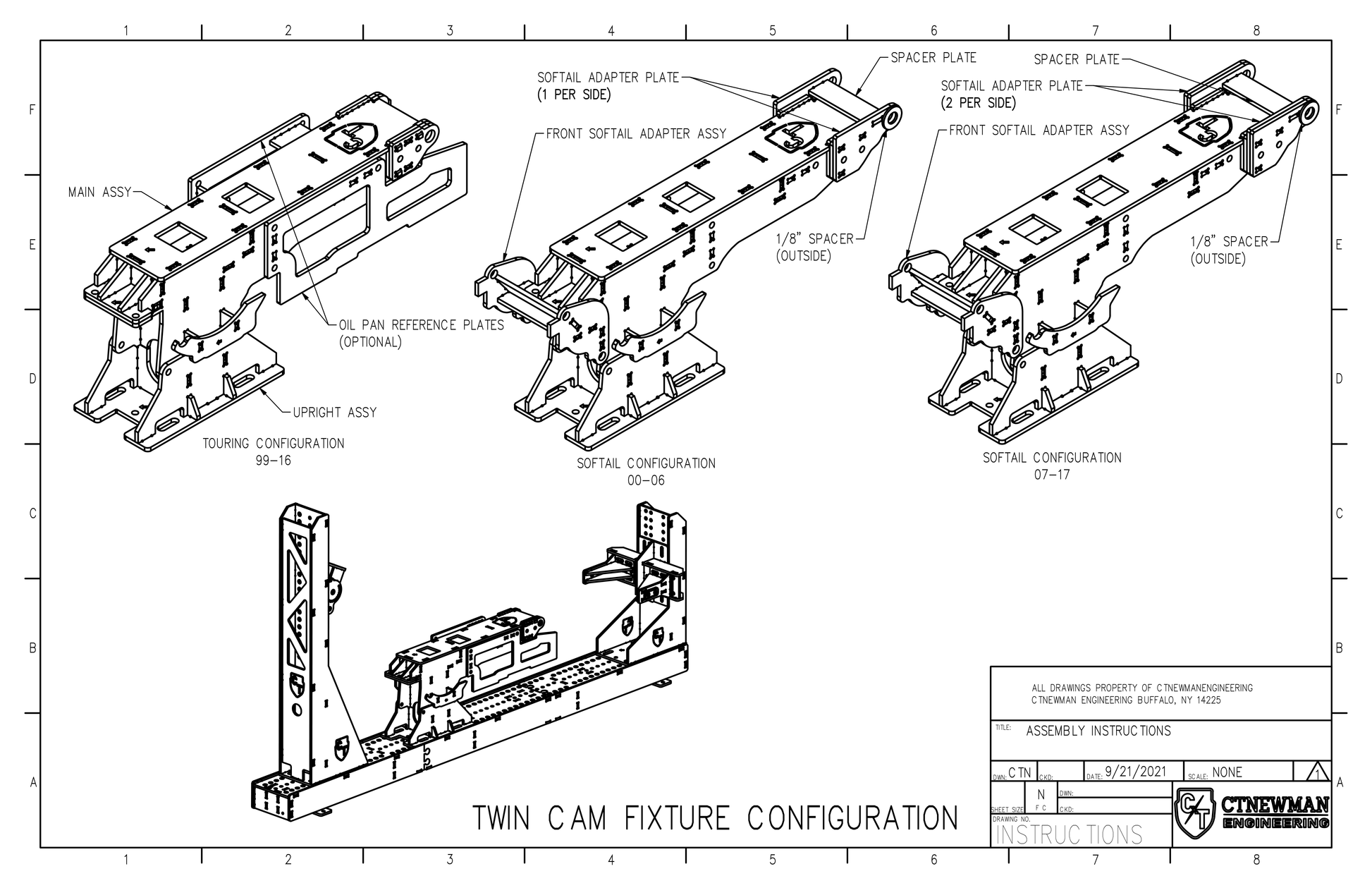

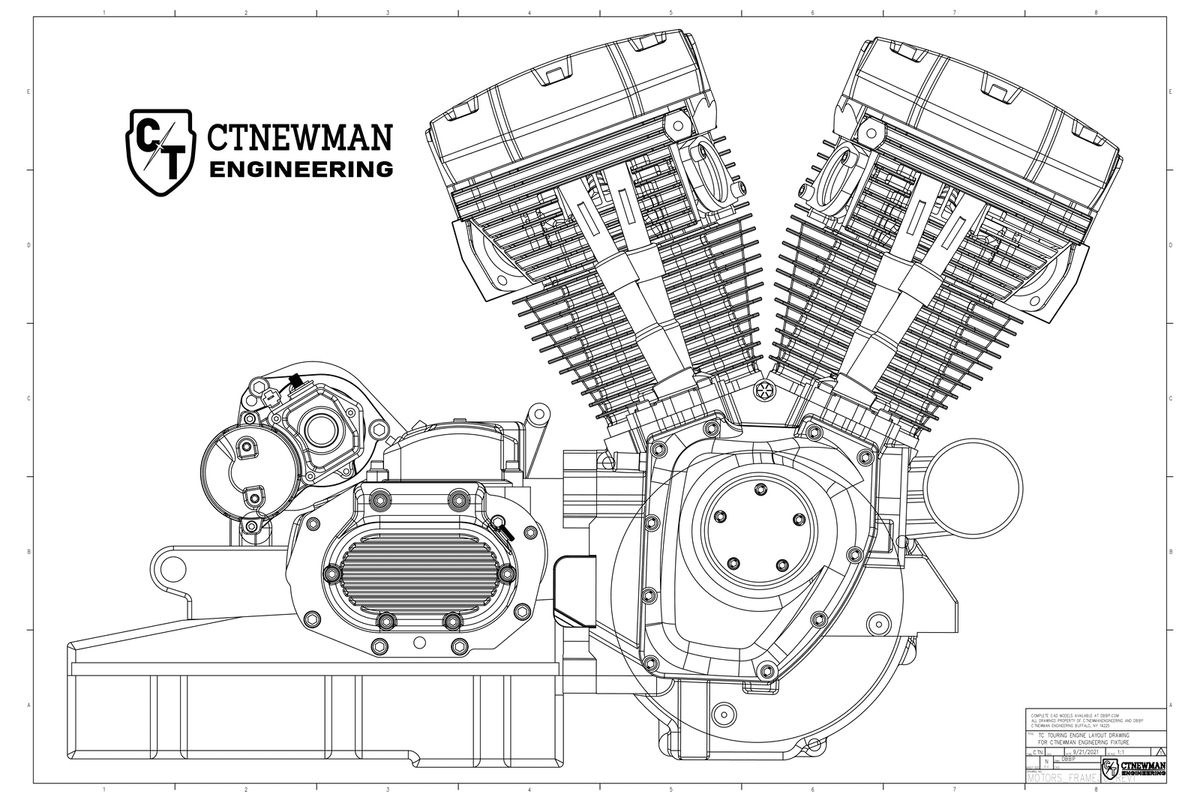

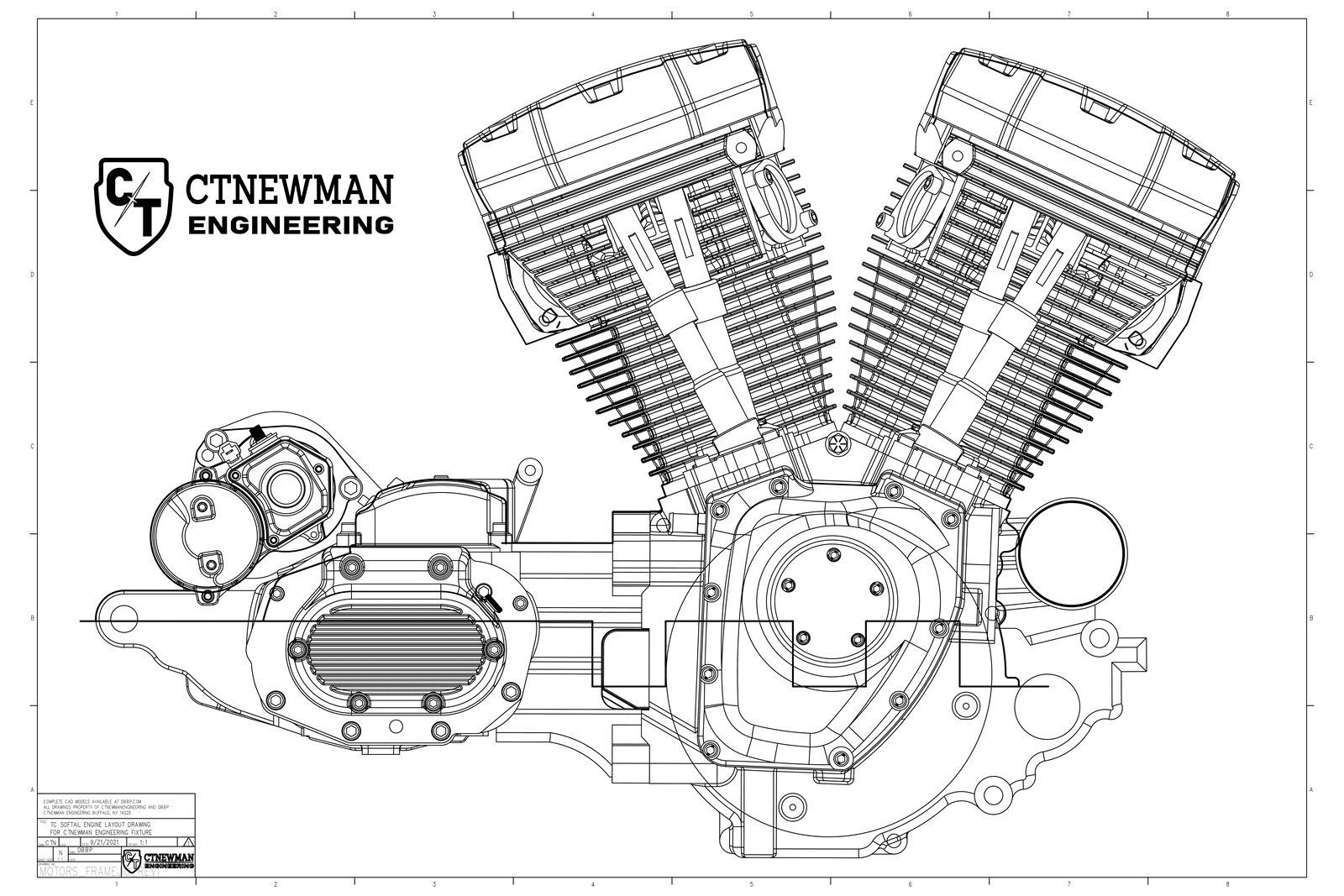

Twin Cam:

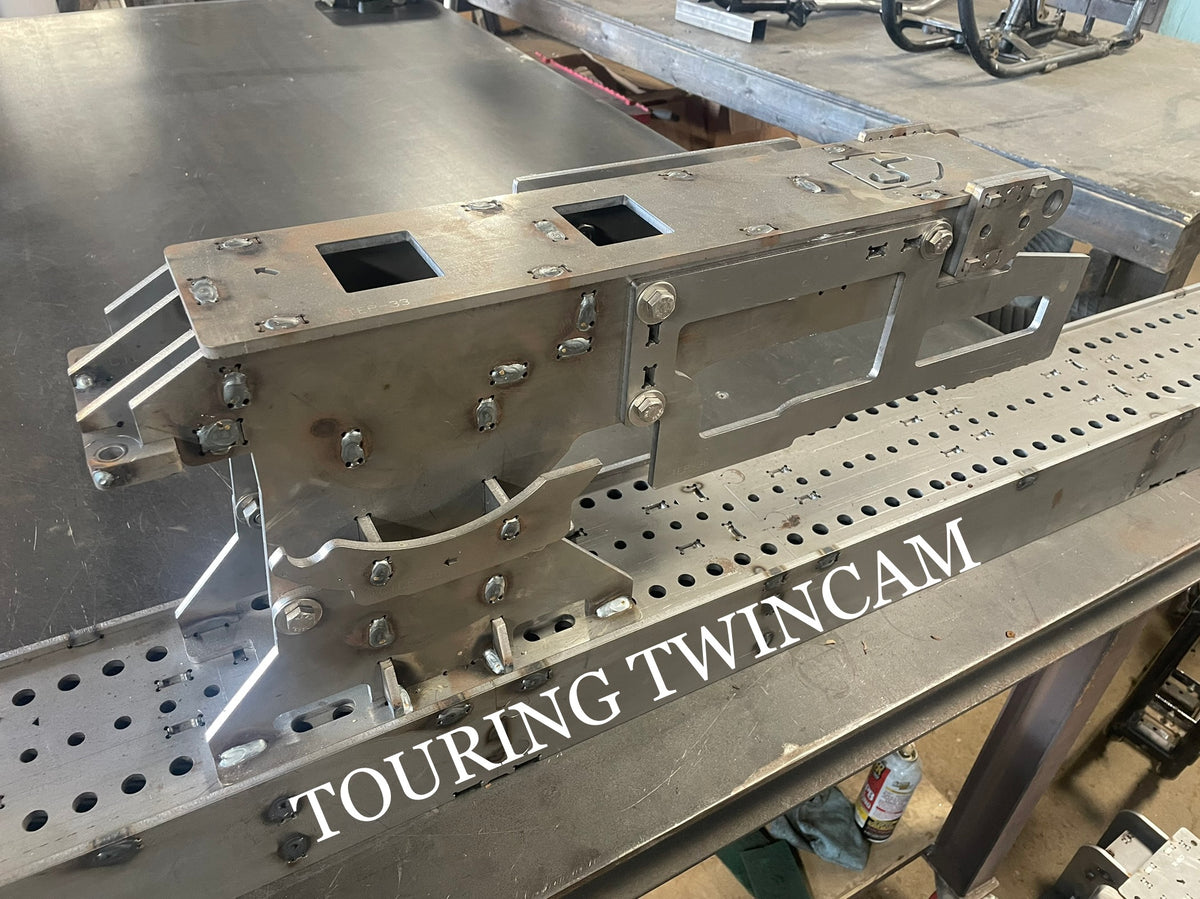

  • Fits Touring/FXR 99-16
  • Fits Softail 00-17

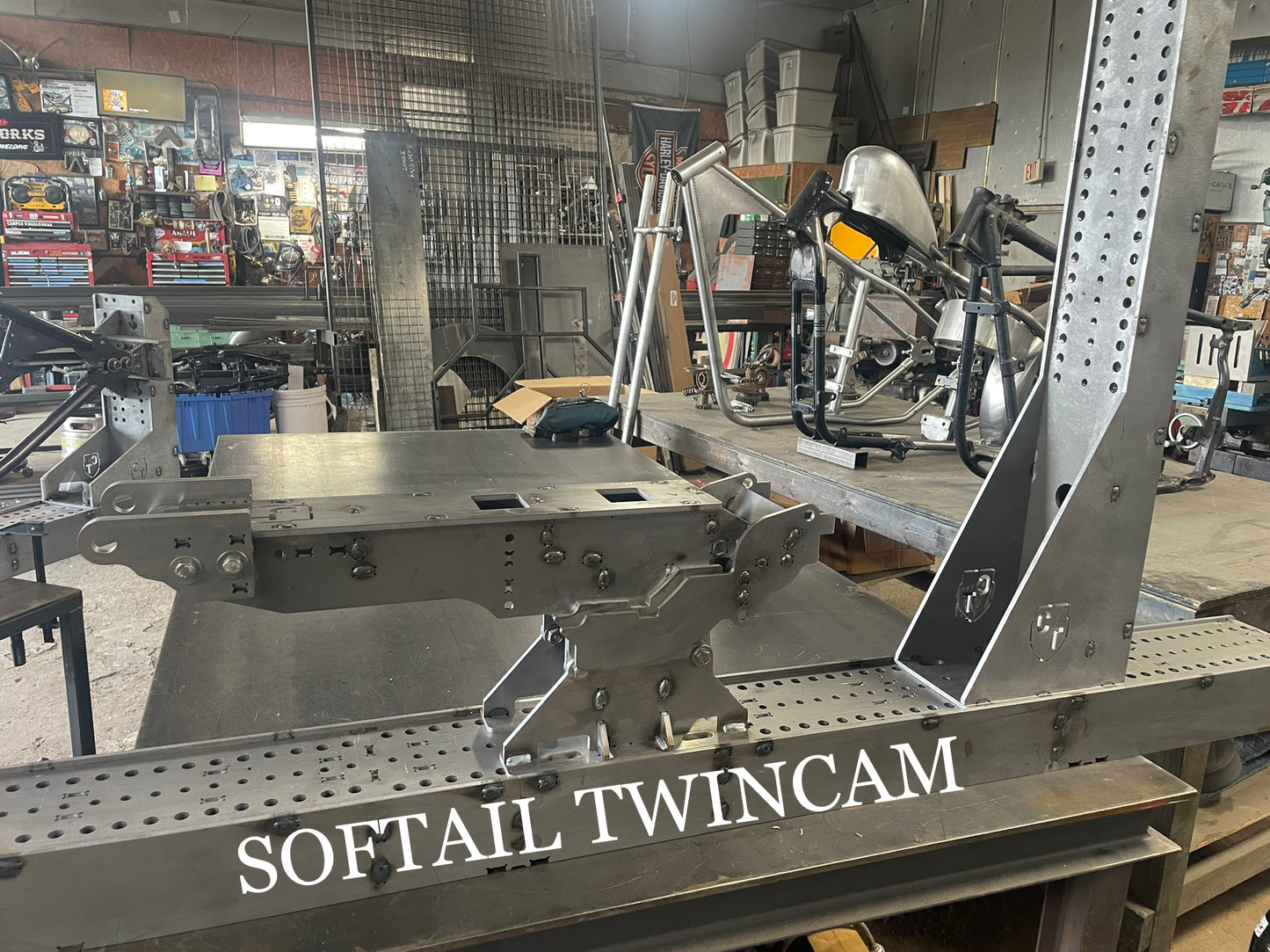

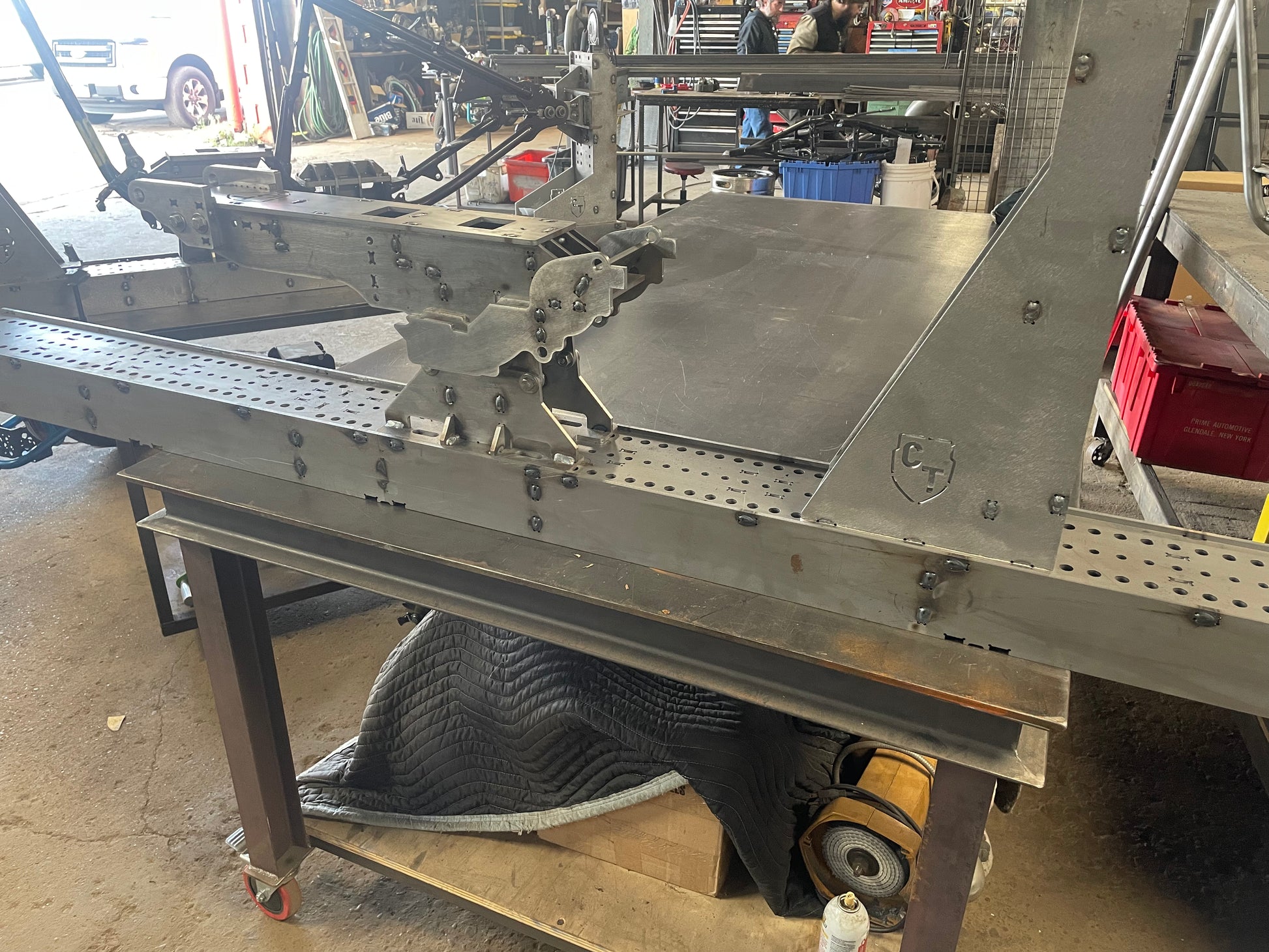

  • Includes center riser assembly with pass thru provision for single loop frame

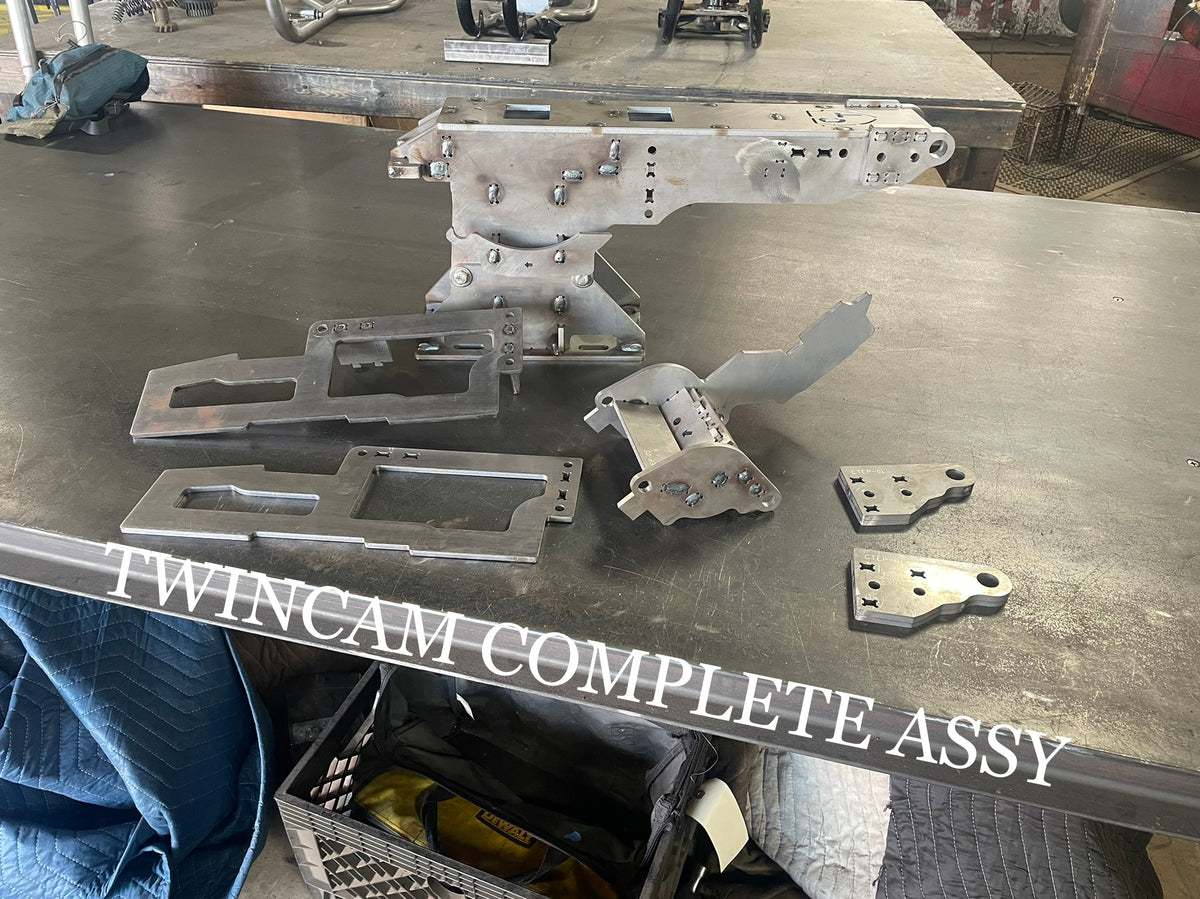

  • Reference plates Engine/transmission/oil

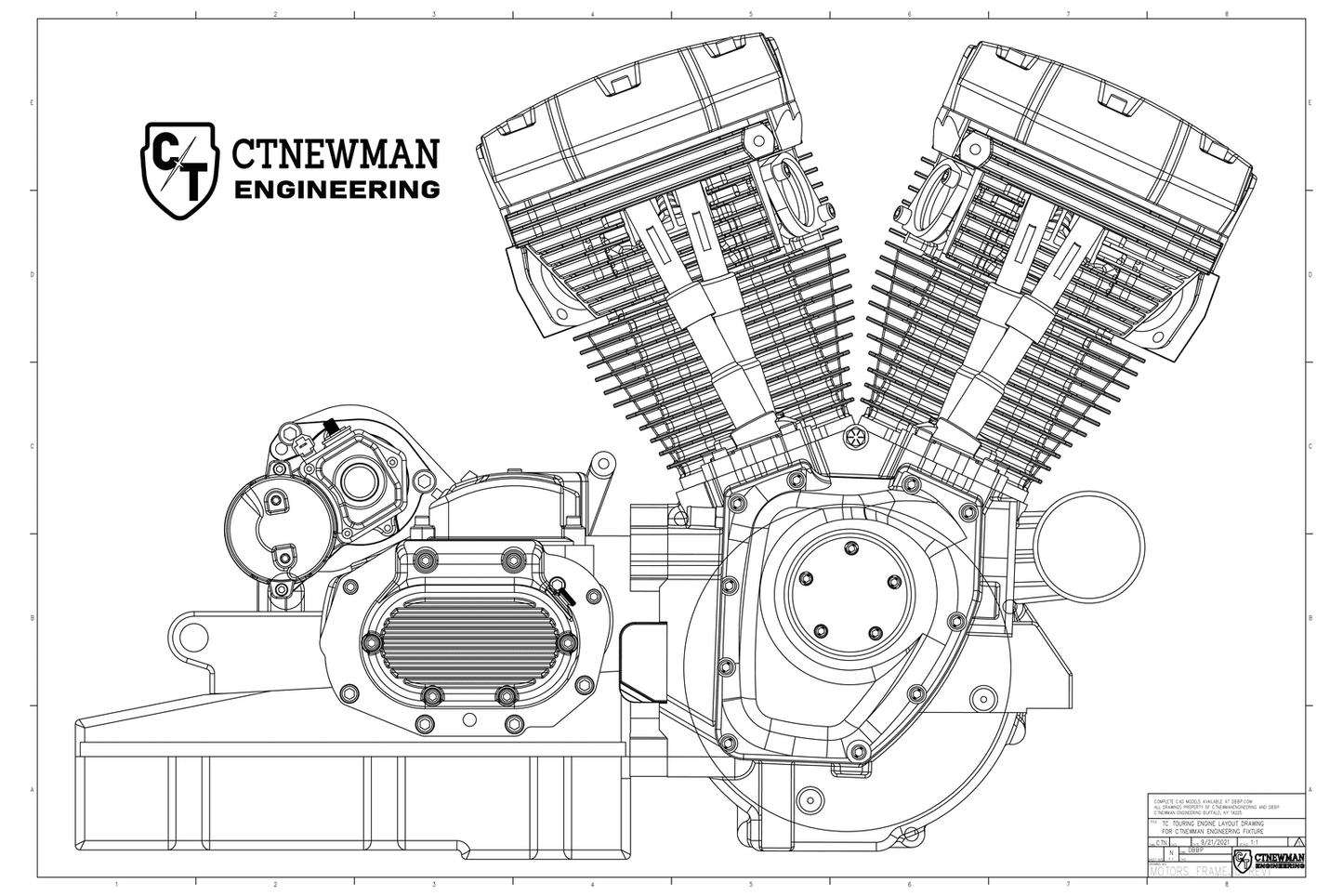

  • Includes reference print for frame mockup
  • Includes hardware

CTNEWMAN'S thoughts on Twin Cam engines:

Coming from the traditional shovelhead and earlier chopper scene, I always ignored anything that was newer because it seemed complicated/difficult/uncool/etc.  As I've been digging into the Twin Cam world a bit while designing these fixtures, here are a couple of facts about them that actually could lend them being used in cool custom bikes.  Might be very obvious for some, but not for others.

  • Kick start exists for softail/touring transmission up to 2006
  • Magneto conversions available (evo style and even points conversions available, too)
  • Carbs were used up to 06
  • Touring/FXR bikes have engine oil pan integrated below transmission!
  • Simple mounting.  Really easy to build frames. Twincam engines and transmissions bolt together (think sportster but it can come apart) No need to have a rear motor mount/front trans mount (or even a seat tube).  Softail motors have two cross bolts in the front and one in the rear.  Touring/FXR motors have a standard front motor mount and a single cross bolt in the rear.
  • Softail motors have balance shafts and run REALLY smoothly. Maybe that's a con to some of us.
  • Parts availability.  Newer motor, obviously easy to get parts.
  • Reliable.  There is a cam tensioner update required on earlier years, but once that's complete these motors will run long and hard.
  • Motor availability and cost.  You can pick up twincam motors for the cost of a nice 4 speed TRANSMISSION.  I'm serious.  I have seen complete motor/trans sets for 1200 bucks pulled from running bikes.
  • Touring/FXR motors can be rubber mounted, but, like, why bother.

I think if I were going to build a Twin Cam chopper, I'd get a pre 06 Touring/FXR motor.  Rigid mount the front (standard HD front mount) and rear (simple cross bolt).   I'd toss on a kicker kit and a magneto.  It has the oil tank built into it.  I wouldn't run a battery.  Rig up a foot clutch hand shift. Wiring/hoses? Have one a wire that runs to headlight/taillight, a throttle cable and a fuel hose and THAT'S IT.

Sounds pretty chopper if you ask me.

Available exclusively for owners of our BIG TWIN FRAME JIGS.  Not available individually.
