EDIT 10/09/23: Available units expected to be listed before end of October.
Have you always wanted a magneto for your sportster but don't like the competition's bulky and wide approach? (not to mention hanging the whole assembly off two 8-32 screws). Look no further than the CTNEWMAN ENGINEERING sportster magneto setup.
Units are listed here as they become available. Choose the cover you want from the drop-down. All cam cover conversions include a new cam seal.
If you would rather send me your cover to be modified, check this listing HERE
IMPORTANT: please note the year range on your choice. 00-03 covers can be used on any motor 91-03. You cannot use a 91-99 cover on an 00-03.
If you have a 98-03 cam cover I can refund some of your money if you send it in for an exchange. Value depends on year and condition. Email me a picture. Must have part number 25230-98 or 25230-98A on the inside.
If you want to use this product on a newer sportster, you need to verify that your cam has a notch and threaded hole in the end of the number 2 cam. If it doesn't, you will need a set of cams that does. You will also probably need to do a carb conversion if you haven't already.
First choice is which cover you prefer. Please read notes about fitment on picture. Photo is product you will receive. Please note these are 20-25 year old OEM parts so there may be dirt, blemishes, scuffs, scratches, casting marks, etc. None of the marks won't be able to be mitigated in some way or another, though. Up to you how you finish. Please refer to notes on individual covers below.
Include a magneto. I use hex drive Morris magnetos for the conversions. It's a magneto set up for a big twin HD (Morris part number MM74E). Most Harley mags are compatible. If you have your own it will require a very minor modification (trimming one of the studs down a bit).

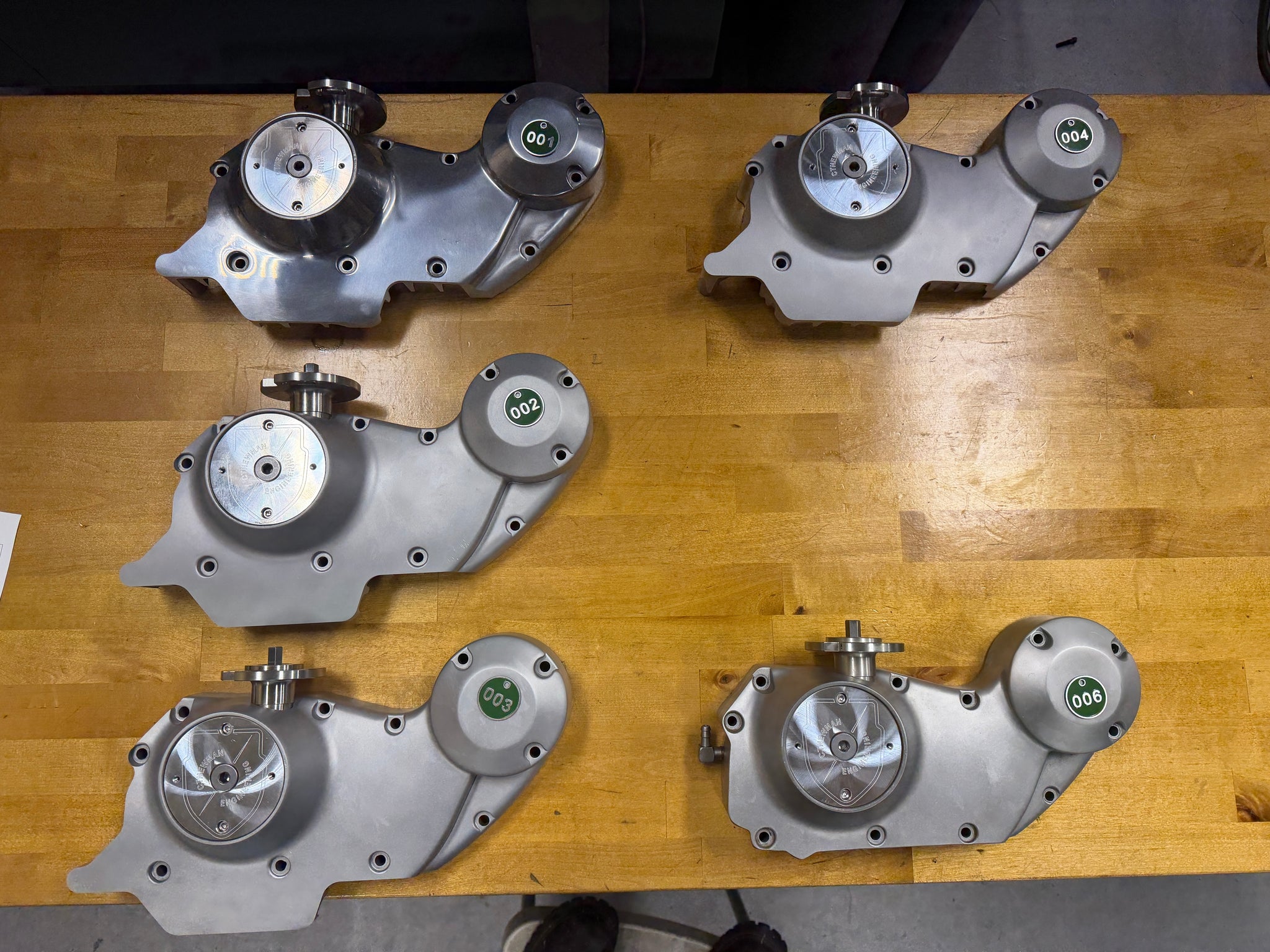

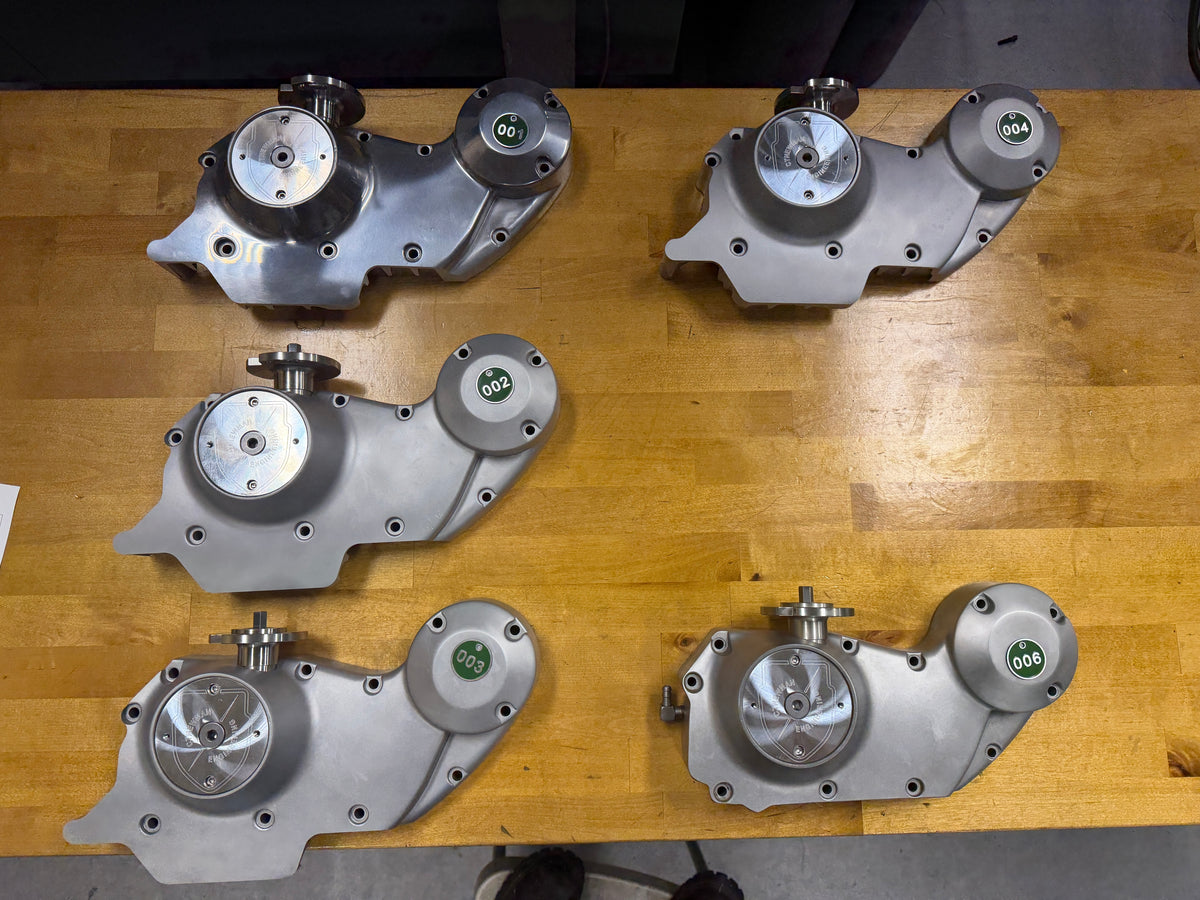

Cover 1: 00-03 (and 91-99). Fresh wrinkle black powdercoat.
Cover 2: 91-99. Fresh wrinkle black powdercoat.

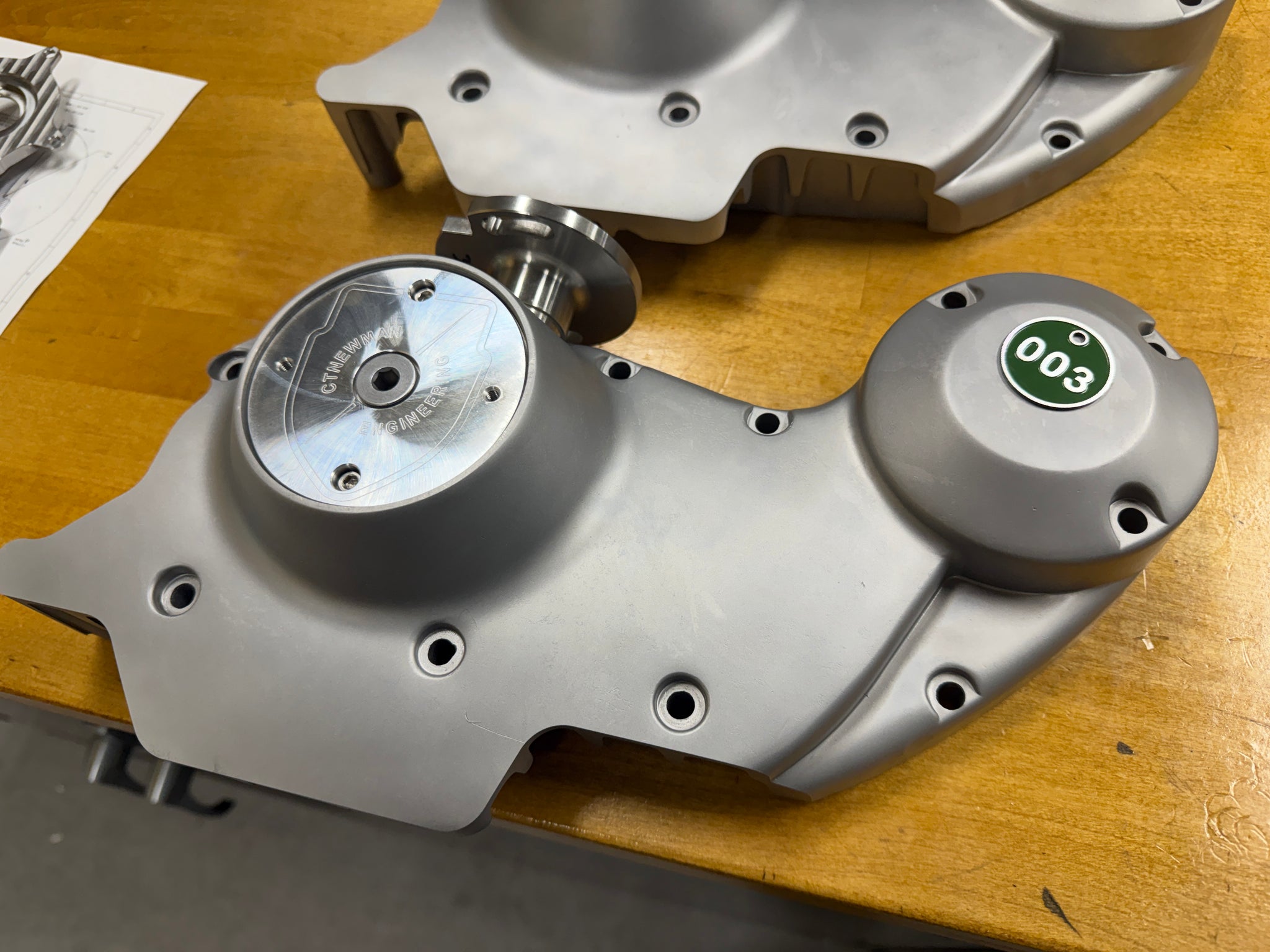

Cover 3: 91-99. Vapor blasted. Small V shaped scratch.
Cover 4: sold
Cover 5: 91-99. Rough cast.

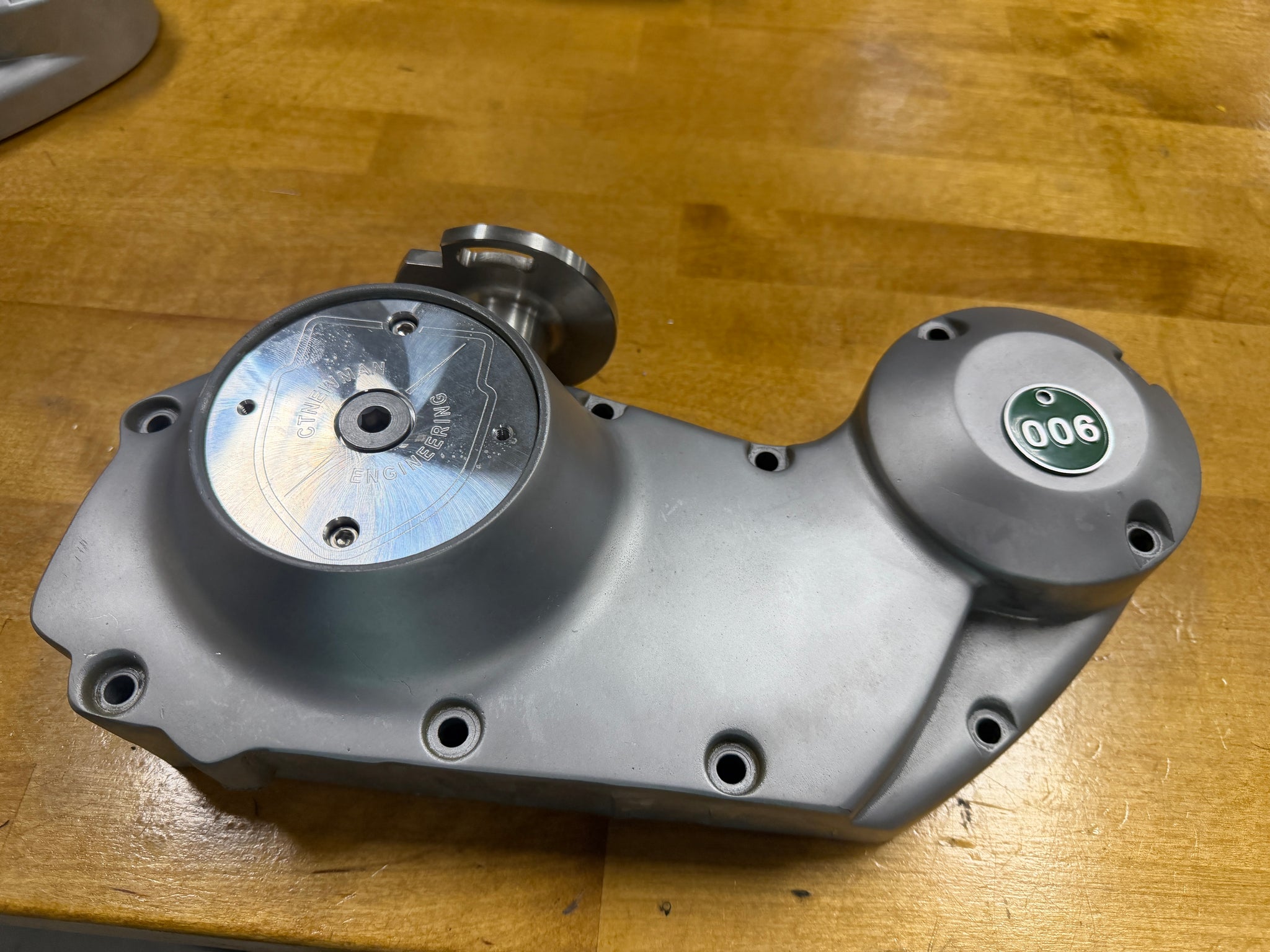

Cover 6: 91-99. Vapor blasted. Some light casting streaks.
Cover 7: 00-03 (and 91-99). Vapor blasted, some light casting streaks.
Cover 8: 00-03 (and 91-99). Rough cast.
Cover 9: 91-99. Vapor Blasted. Trimmed by someone else.
